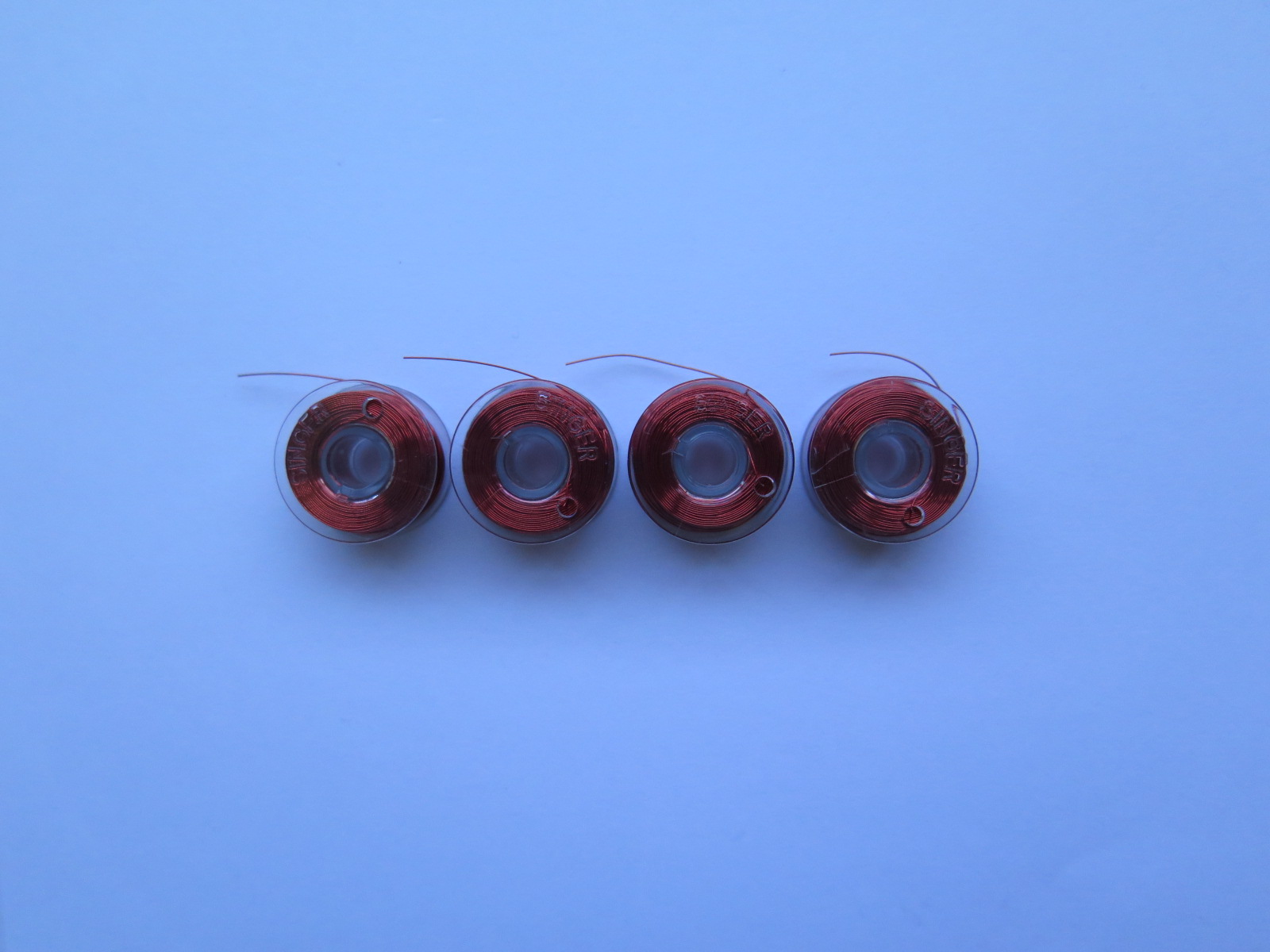

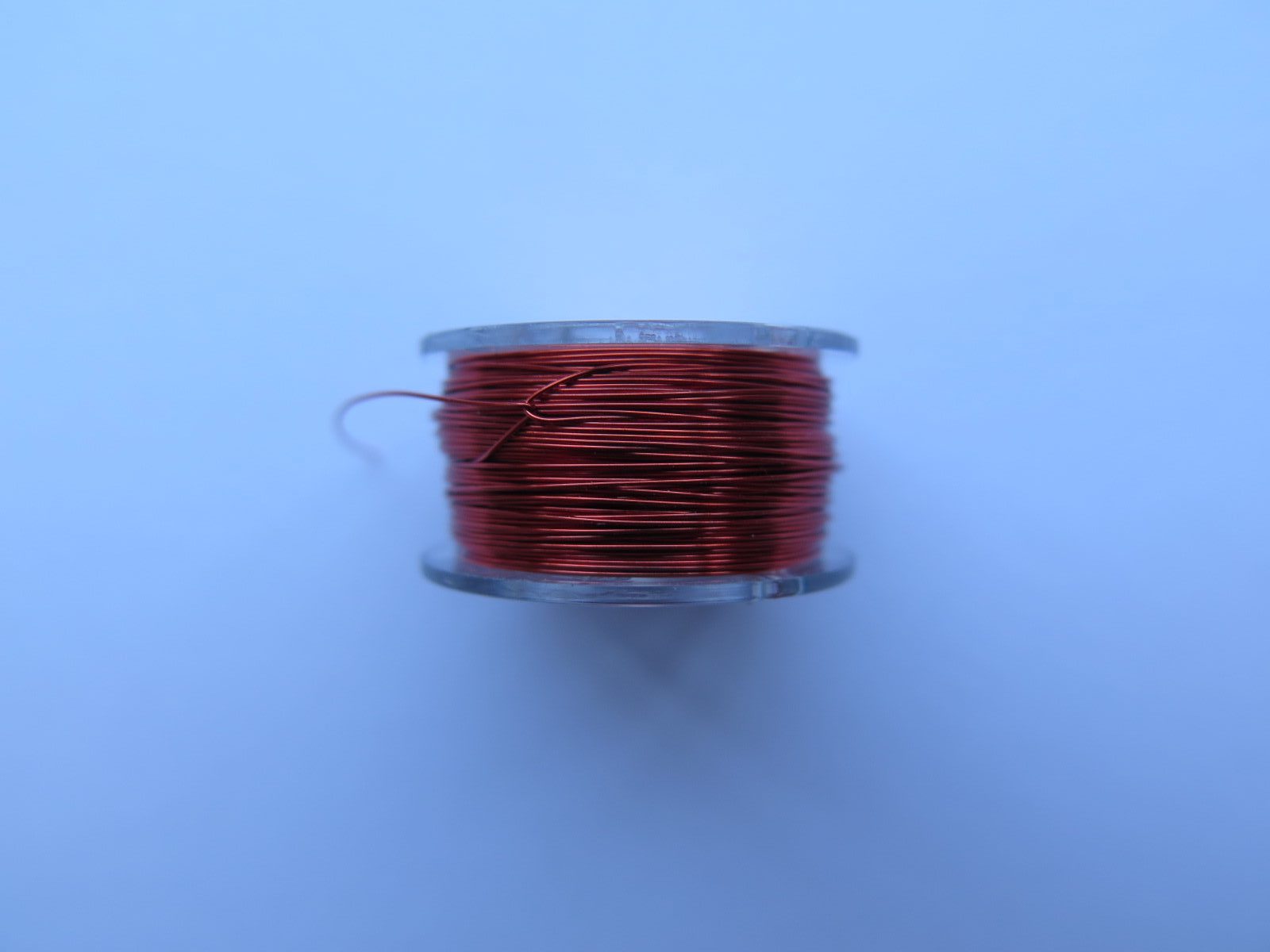

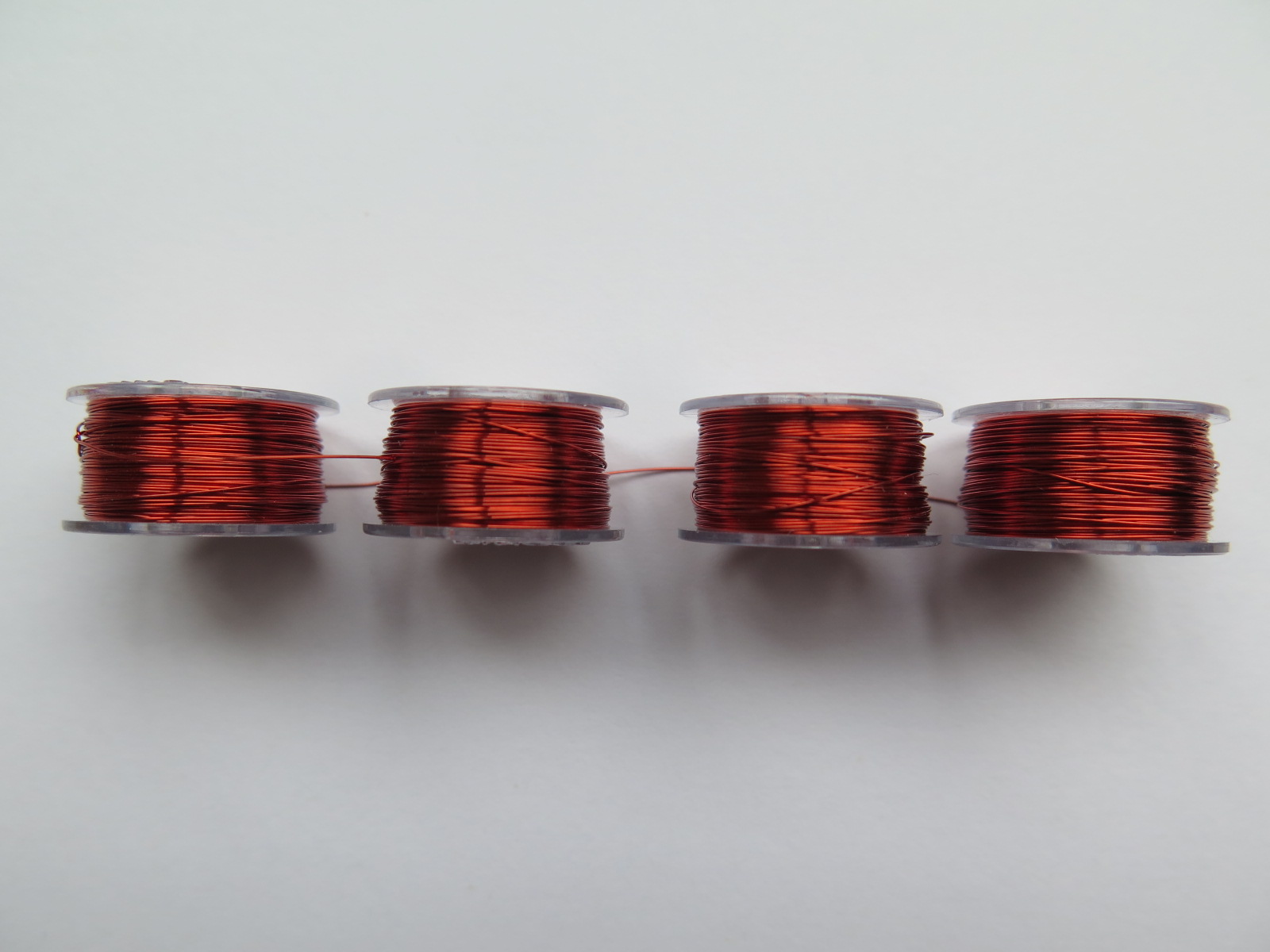

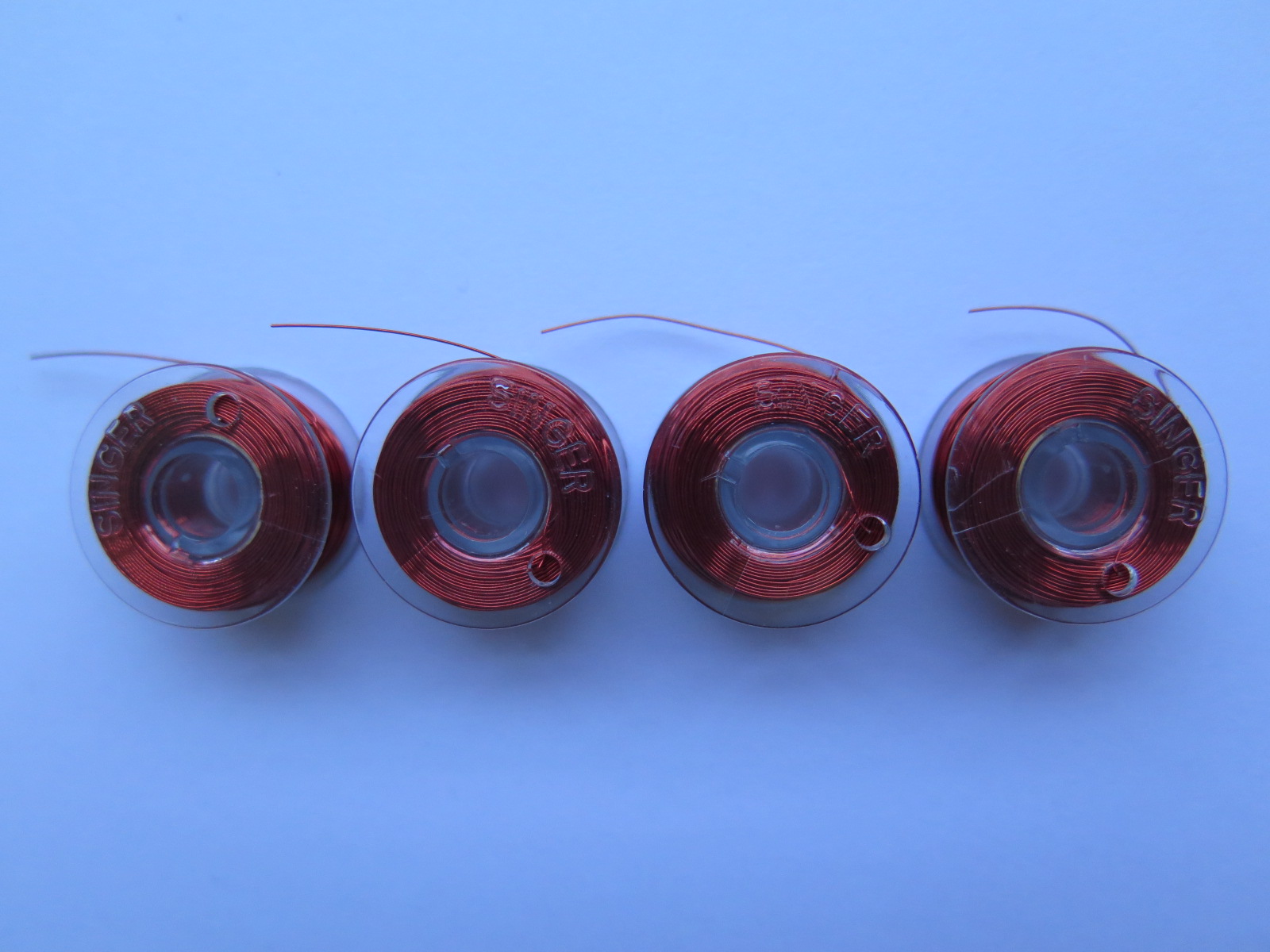

RRW-P-105: Wiring Pencil Wire – Solderable Enamel (Insulated) 0.19mm dia. Pink/Red Colour Pk4

£10.85

RRW-P-105: Wiring Pencil Wire – Solderable Enamel (Insulated) 0.19mm dia. Pink/Red Colour 4 per pack (wire size: 1/0.19mm (36 swg)) pink/red coloured. RoadrunnerĀ® Wiring Pencil or Wiring Pen wire (insulated) is coated in solderable enamel or self fluxing polyurethane. The wire requires a soldering iron temperature of between 400 ā€“ 430Ā°C+ to remove the enamel. (Weller bit temperature code 8 or 9)

  • Solderable Enamelled self fluxing Copper Wire
  • Coloured wiring pencil or wiring pen wire for refill bobbins or wire spools are: gold, pink, green, violet/blue
  • Coated in self-fluxing polyurethane, conforming to IEC 60317ā€“0-1
  • Suitable for prototype wiring, PCB track repairs and rework, shorting links and coil forming Maximum continuous temperature +120Ā°C Suitable soldering temperature 400-430Ā°C

Link to the Solderable Enamel Wire Data Sheet

Frequently Asked Questions

What distinguishes the RRW-P-105 pink/red wire?
ā–¶
The RRW-P-105 is a 0.19ā€Æmm diameter insulated copper wire featuring a vibrant pink/red enamel finish, ideal for color-coding and easy identification in complex wiring schemes.

How many bobbins are included and what is the length per bobbin?
ā–¶
Each pack contains 4 refill bobbins, each holding approximately 20ā€Æm of 0.19ā€Æmm dia. wire, giving you sufficient length for multiple projects.

What soldering temperature is required to remove the enamel?
ā–¶
A soldering iron temperature between 400ā€“430ā€ÆĀ°C (Weller bit code 8 or 9) is recommended to burn off the self-fluxing polyurethane enamel and solder the wire effectively.

What are the ideal applications for pink/red insulated wire?
ā–¶
Pink/red insulated wire is perfect for marking positive supply lines, distinguishing signal paths, or adding visual clarity to multi-wire bundles during prototyping and repairs.

What are the temperature ratings and compliance standards?
ā–¶
The enamelled insulation is rated for continuous use up to +120ā€ÆĀ°C and conforms to IECā€Æ60317-0-1 standards for self-fluxing polyurethane enamel wire.
