Oktapad® Surface Mount Technology (SMT) Prototyping Eurocard: RRB-014

£15.41

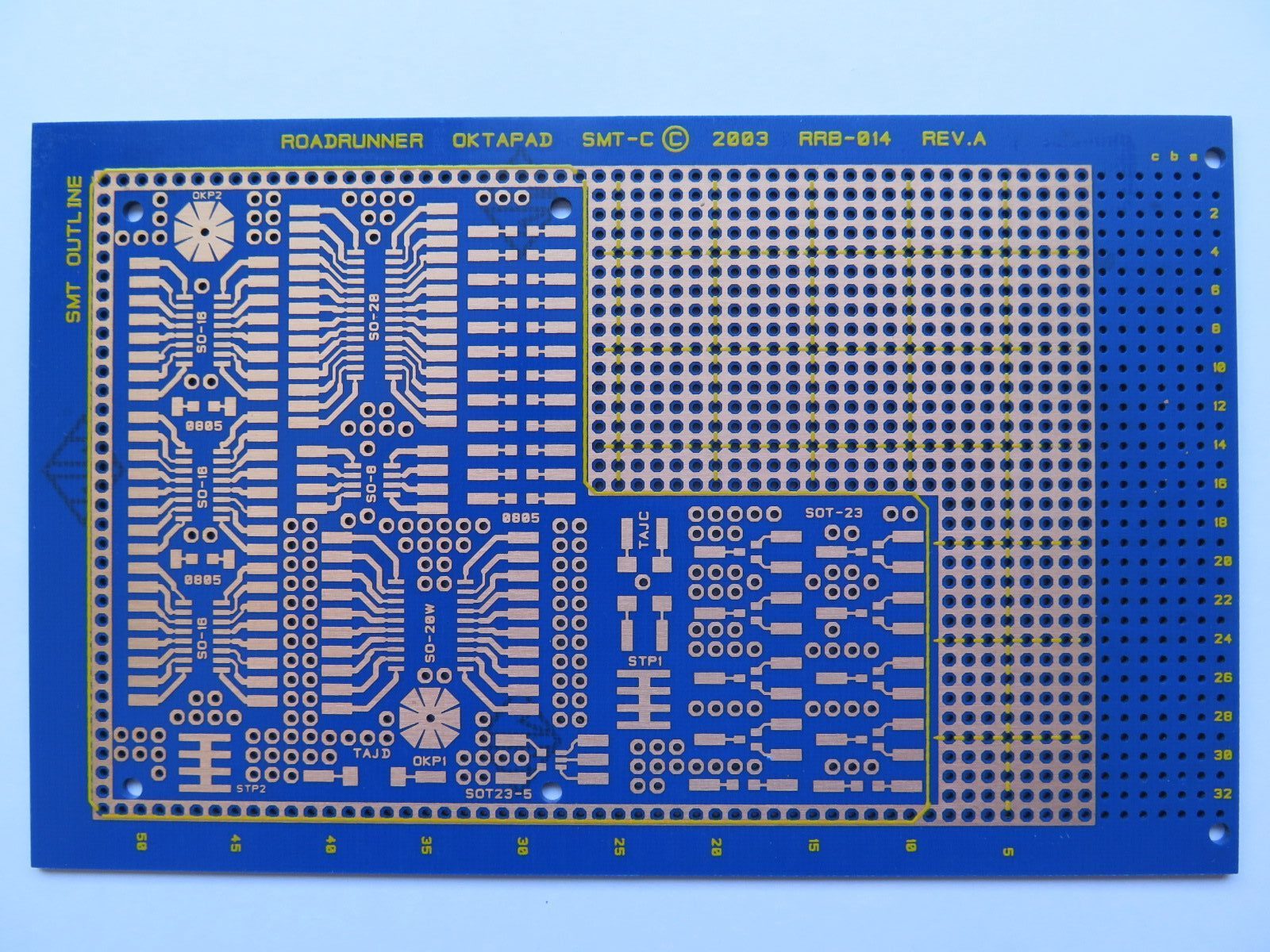

Oktapad® Surface Mount Technology (SMT) Prototyping Eurocard: RRB-014 – Single Height Double Sided prototyping circuit board, 3U – 100mm x 160 mm, Oktapad® Format. Designed for prototyping Surface Mount Devices SMD’s.

  • Combined with Oktapad® format
  • Single height, double sided PCB
  • Facilitates wiring of Surface Mounted Devices (SMDs) and conventional devices
  • Silkscreen reference component side
  • Popular SMD footprints
  • SMD leads fan out to easy-to-wire solder pads
  • SMD Pattern both sides
  • Colander ground plane covers remaining component side
  • Hole matrix on 2.54 x 2.54mm
  • Hole size (Matrix) 1.02mm
  • Provision for ‘piggy-back’ board – 4 x fixing holes
  • DIN 41612 connector mounting holes at one end – 32/64/96 way
  • DIN 41494 cardframe compatible

Specifications for all Boards:

Material epoxy glass or FR4; Board thickness 1.6mm; Connector pattern to DIN41612; Hole matrix 2.54 x 2.54mm; Hole size 1.02mm; Copper Thickness 1oz/ft2 or 35 microns or 305g/m2; Protective Coating OSP – organic solderability preservatives (anti tarnish); RoHS Compliant

Frequently Asked Questions

What is the RRB-014 Oktapad® SMT Prototyping Eurocard?
▶
The RRB-014 is a single-height (3U), double-sided Oktapad-format Eurocard (100 × 160 mm) designed for prototyping surface-mount devices (SMDs) with integrated stripboard-style wiring.

How are SMT components integrated on this board?
▶
Popular SMD footprints are silkscreened on both sides, and their leads fan out to larger solder pads that align with the 2.54 × 2.54 mm matrix holes for easy hand wiring.

What prototyping features does the board offer?
▶
Features include silkscreened component references, a colander ground plane, piggy-back mounting holes (4×), stripboard matrix holes for conventional wiring, and grid references for precise placement.

What connector and compatibility provisions are included?
▶
The board includes DIN 41612 connector mounting holes at one end (32/64/96-way) and is compatible with DIN 41494 card frames, supporting both Roadrunner® wiring and standard wire wrap.

What materials and compliance standards apply?
▶
Made from FR4 epoxy glass (1.6 mm thick) with 35 µm copper and an OSP anti-tarnish coating, the board meets RoHS compliance for durable, environmentally safe prototyping.
