Frequently Asked Questions
What is the RRB-006 Oktapad® Stripboard Eurocard?
▶

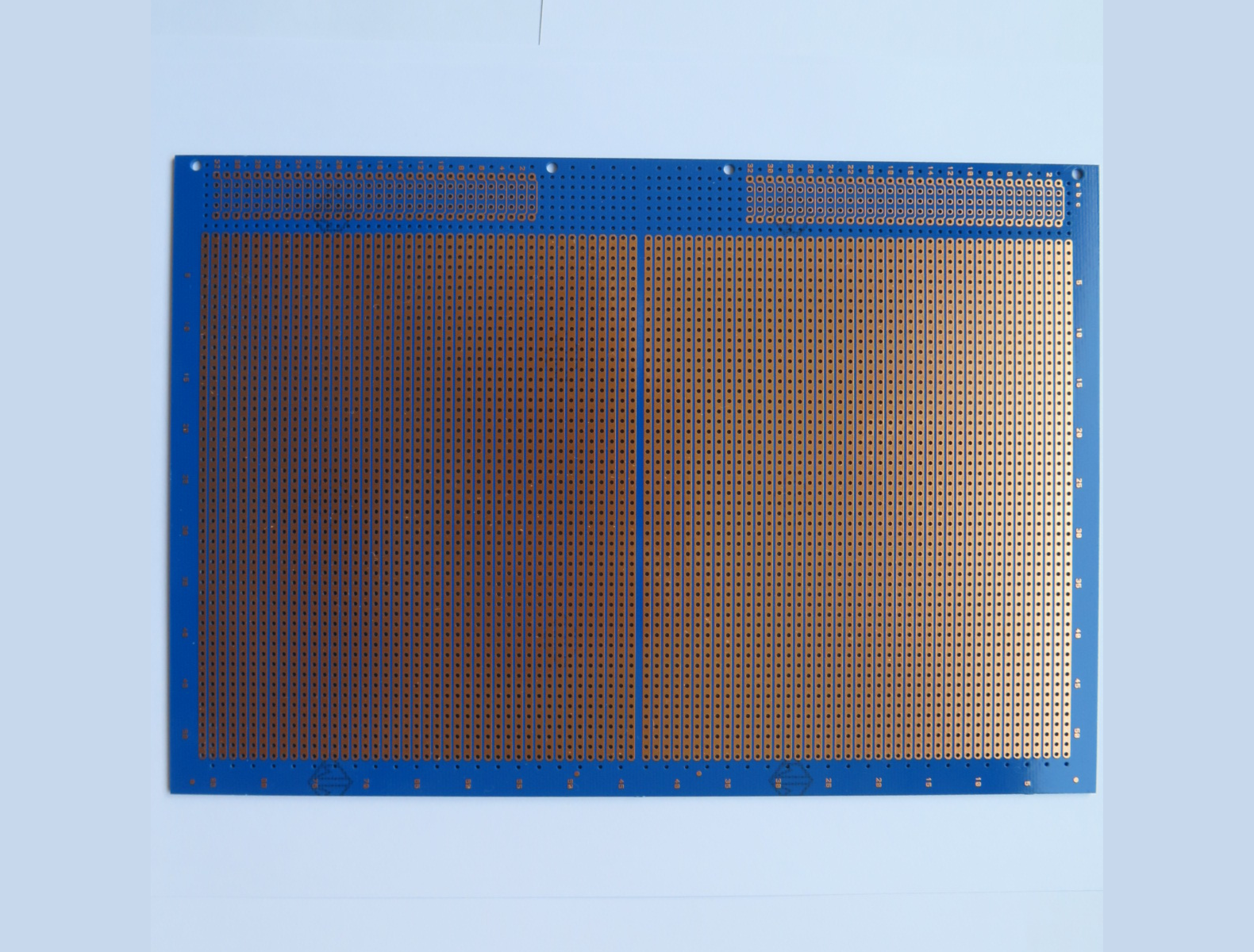

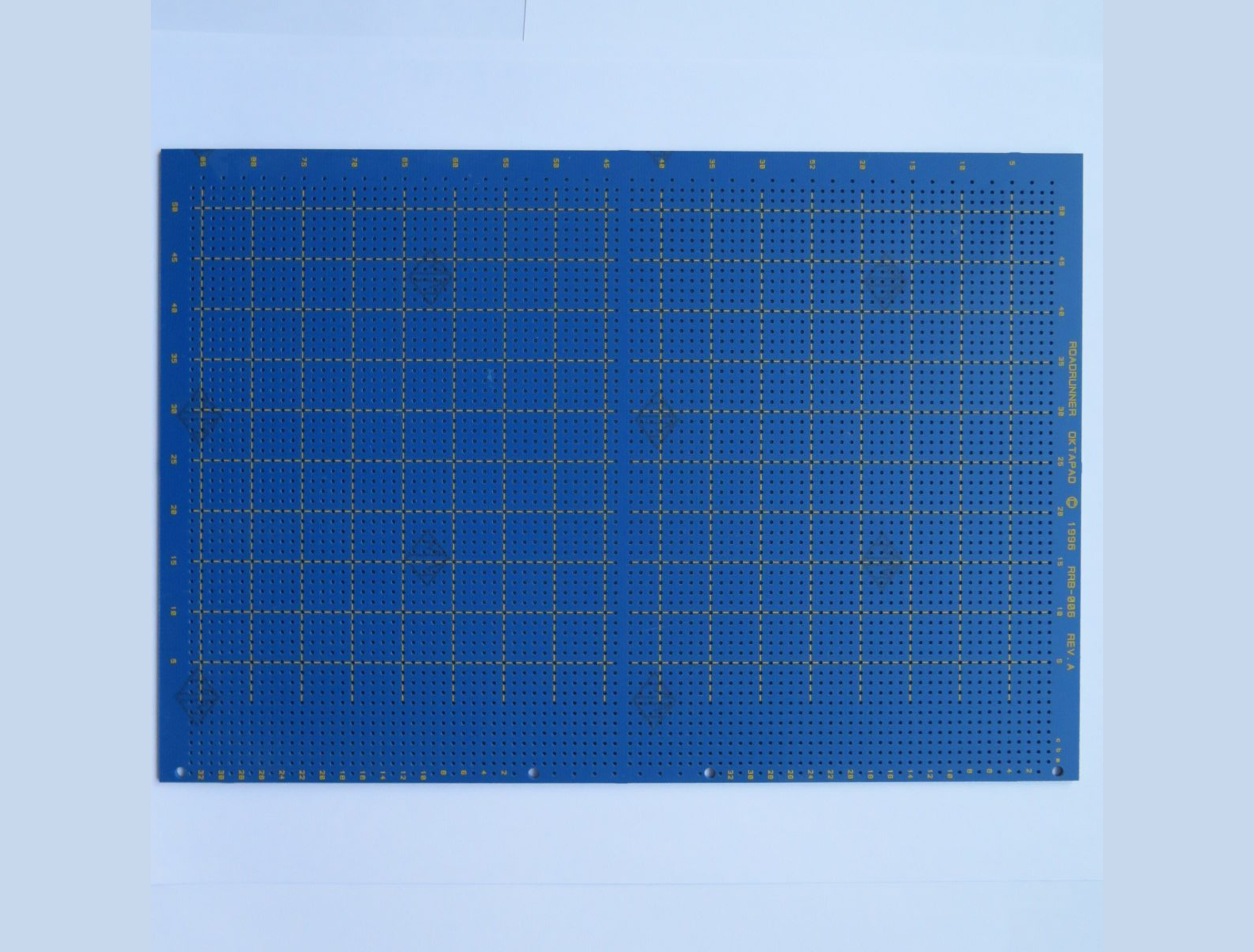

The RRB-006 is a double-height (6U), single-sided Oktapad-format Eurocard (233.4 × 160 mm) featuring a unique octagonal stripboard layout for general-purpose prototyping.
What are the key stripboard features?
▶
It uses an octagonal pad pattern on a 2.54 × 2.54 mm matrix, providing design flexibility and a 3.8 mm central gap for routing or component placement.
Which wiring methods are supported?
▶
The board is compatible with the Roadrunner® wiring system, traditional wire wrap, and general discrete component wiring, making it versatile for various prototyping techniques.
What connector and mounting options does it offer?
▶
It includes DIN 41612 connector mounting holes at one end (32/64/96-way) and is compatible with DIN 41494 card frames for easy integration into rack systems.
What are the board specifications?
▶
Constructed from FR4 epoxy glass (1.6 mm thick) with 35 µm copper, featuring 1.02 mm drillings on a 2.54 × 2.54 mm matrix. It is RoHS compliant with an OSP anti-tarnish finish.
