Frequently Asked Questions
What is the RRB-003 Oktapad® Stripboard Eurocard?
▶
The RRB-003 is a single-height (3U), single-sided Eurocard (100 × 160 mm) in Oktapad® stripboard format, designed for versatile general-purpose prototyping.
What makes the Oktapad® strip format unique on this board?
▶

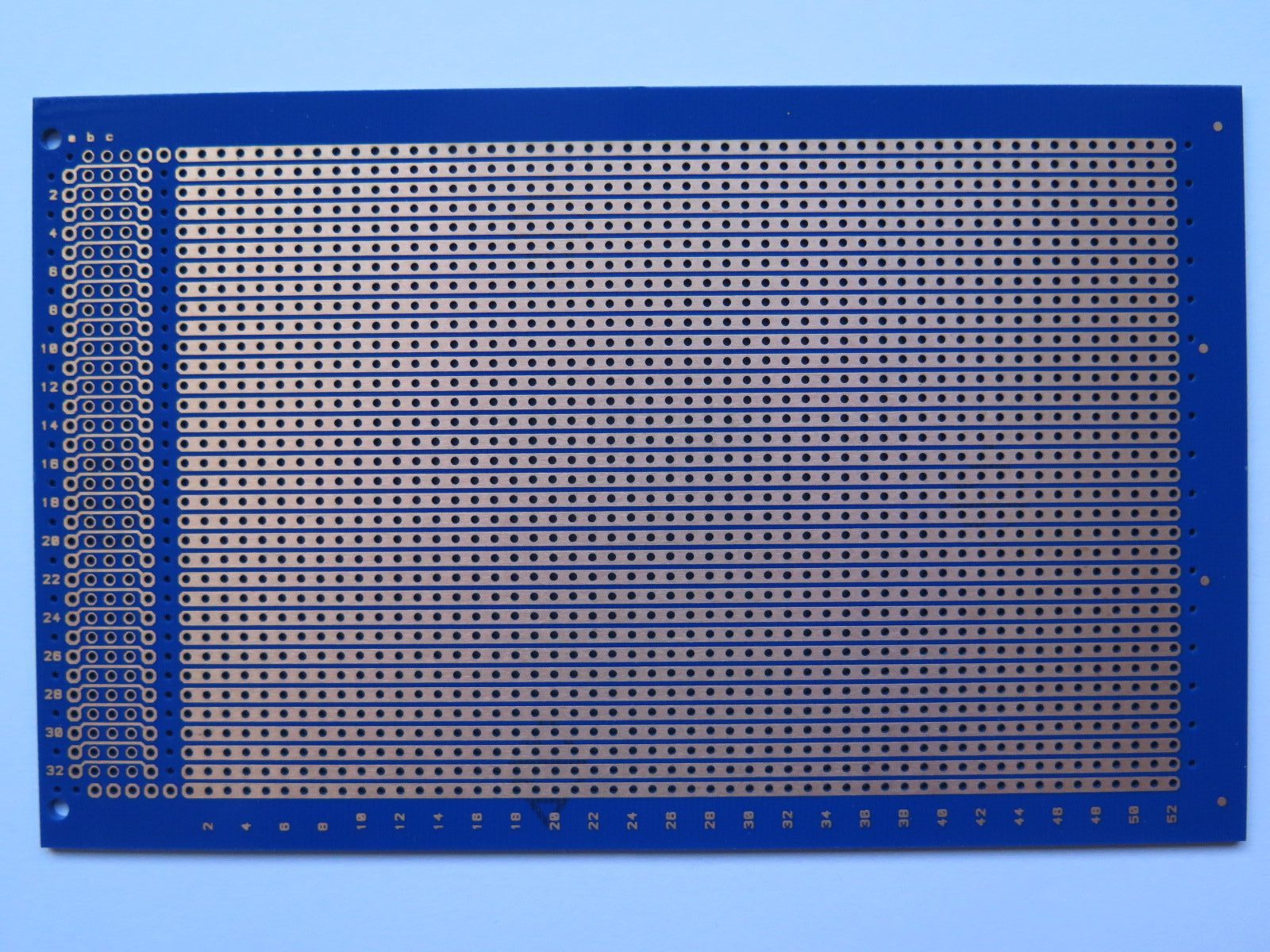

It features an octagonal pad layout on a 2.54 × 2.54 mm hole matrix with 1.02 mm drills, combining flexibility of routing with standard stripboard patterns.
How should I use the silkscreen references?
▶

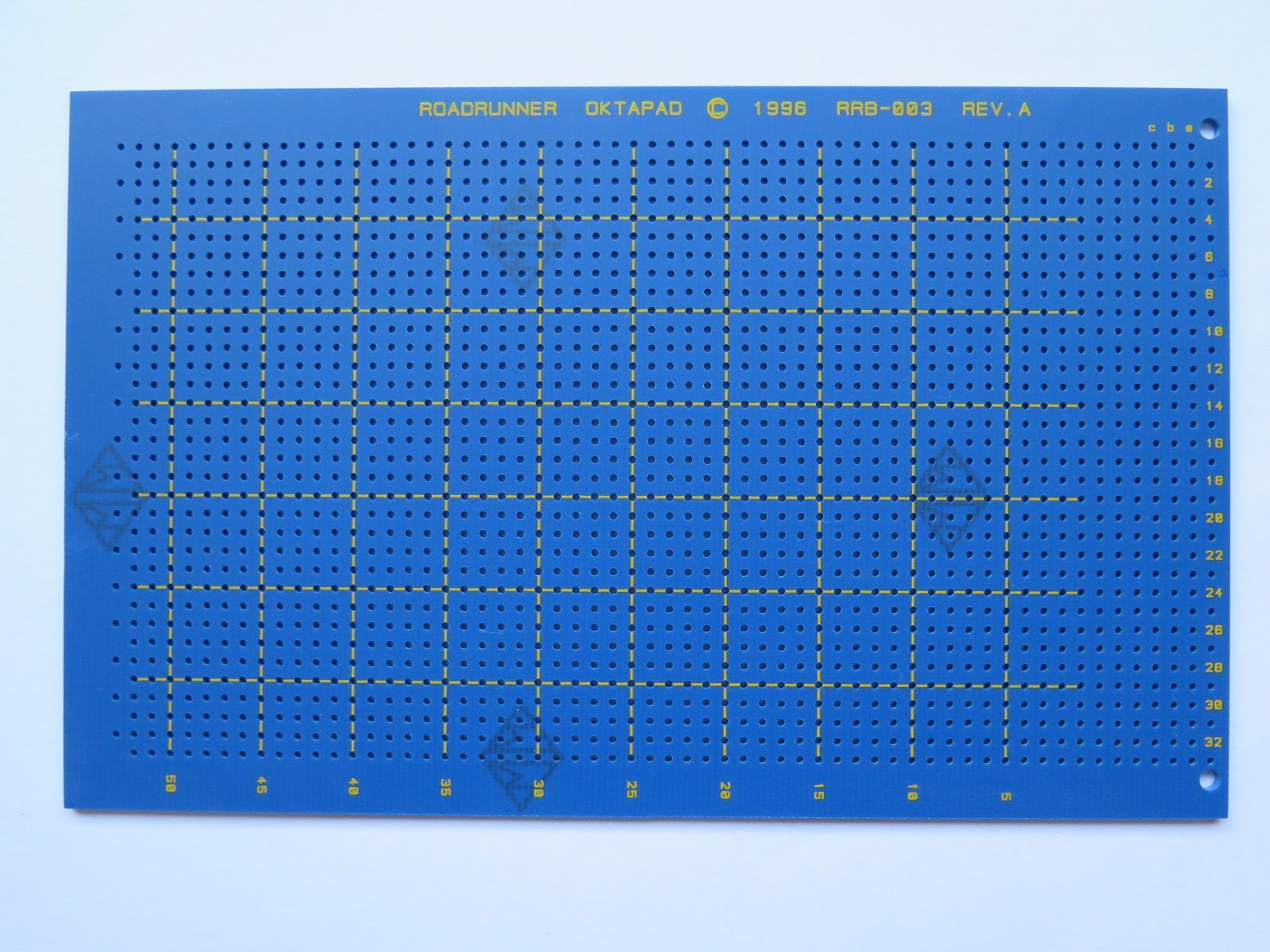

The component side is silk-screened with grid references and pad identifiers to guide you in accurate placement of components and routing of wires.
What connector options and compatibility does it offer?
▶
Includes DIN 41612 connector mounting holes at one end (32/64/96-way) and is compatible with DIN 41494 cardframes; supports Roadrunner®, wire wrap, or standard discrete wiring.
What are the board’s construction and compliance specifications?
▶
Made of FR4 epoxy glass (1.6 mm thick) with 35 µm copper, the RRB-003 features OSP anti-tarnish coating, is RoHS compliant, and provides reliable mechanical and electrical performance.
