Material epoxy glass or FR4; Board thickness 1.6mm; Connector pattern to DIN41612; Hole matrix 2.54 x 2.54mm; Hole size 1.02mm; Copper Thickness 1oz/ft2 or 35 microns or 305g/m2; Protective Coating OSP – organic solderability preservatives (anti tarnish); RoHS Compliant
Frequently Asked Questions
What is the RRB-002 Oktapad® Prototyping Eurocard?
▶

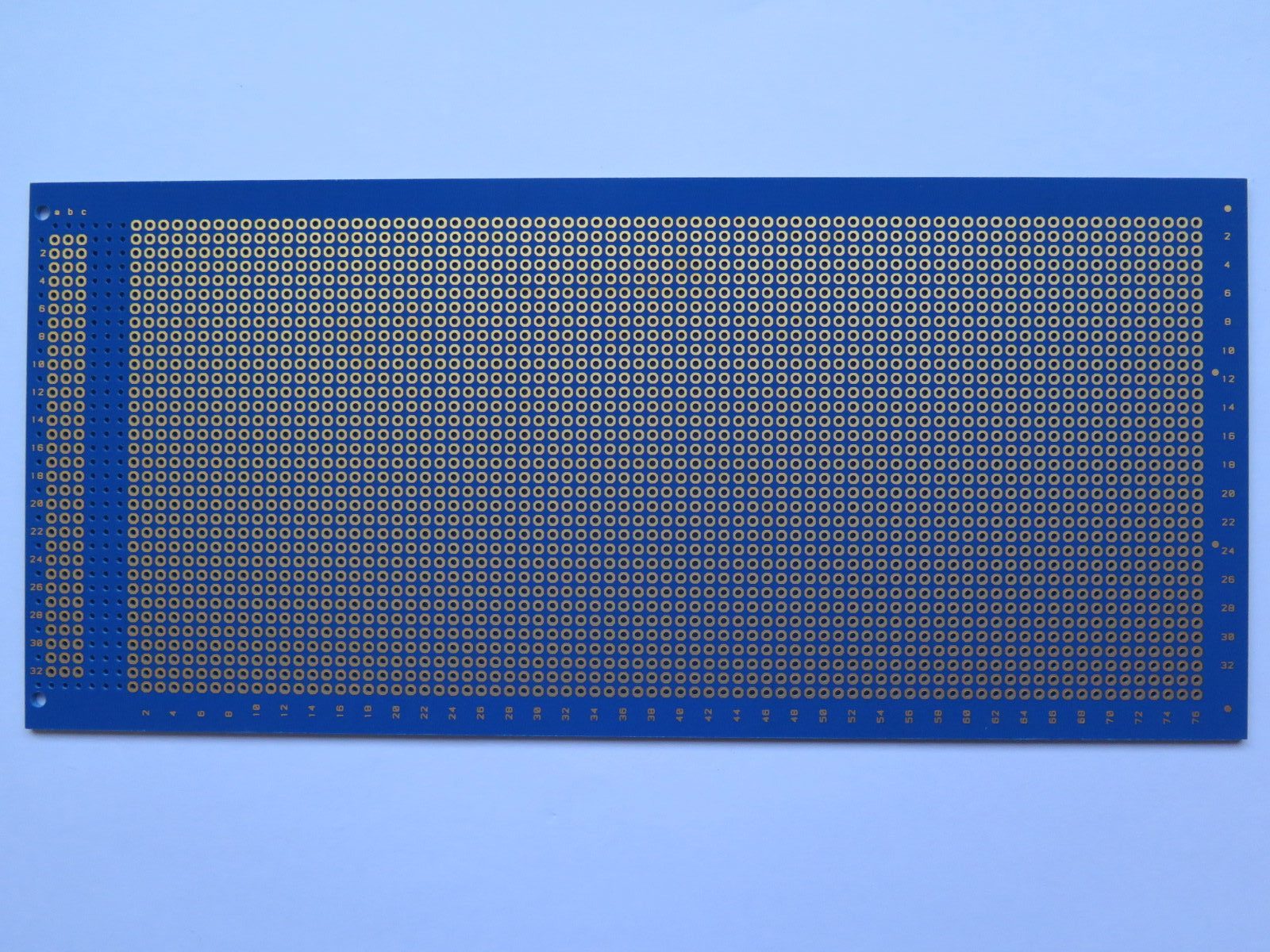

The RRB-002 is an extended single-height (3U), single-sided Eurocard measuring 100 × 220 mm, featuring the Oktapad® octagonal pad matrix on a 2.54 × 2.54 mm grid for versatile general-purpose prototyping.
How does the extended format benefit my prototyping needs?
▶
The extended length provides additional area for component placement and routing, enabling more complex designs or larger circuits within the standard Eurocard footprint.
Which wiring methods can I use on the RRB-002?
▶
It supports the Roadrunner® Wiring System, traditional wire wrapping, and discrete through-hole wiring, allowing you to hand-wire components directly on the octagonal pads.
What connector compatibility does this board offer?
▶
Equipped with DIN 41612 connector mounting holes at one end (32/64/96 way), it is also compatible with DIN 41494 card frames for easy rack mounting and integration.
What materials and specifications define this board?
▶
Constructed from FR4 epoxy glass (1.6 mm thick) with a 35 µm copper layer and an OSP anti-tarnish finish, the board features 1.02 mm drill holes, is RoHS compliant, and provides reliable mechanical and electrical performance.
